10601 Glendale Rd.

Cincinnati , Ohio 45215
Proposal To:
Date:8/4/2021 6:55:42 PM
Reference:27669
Location:#7-12A
Price:$22,500
Salesman:
Fax:
Call Us at: 513-771-1952

4" NOMURA TABLE TYPE HORIZONTAL BORING MILL
Serial No 3782, Model B-100-SP

EQUIPPED WITH:
Outrigger Runway Table Supports
Full Pendant Control w/Joystick Controller
  Tapping - Loadmeter
Power Draw Bar
Tool Lock/Unlock - Power Rapid Traverse
Hydraulic Clamping To Spindle, Headstock,
  Saddle And Table

CATALOGUE SPECIFICATIONS:
Spindle Diameter, Main4"
Spindle Taper#50
Spindle Travel, Main (W-Axis)26"
Table Cross Travel (X-Axis)72"
Spindle-Head Vertical Travel (Y-Axis)50"
Saddle In/Out Travel (Z-Axis)43"
Table Dimensions (Overall) W x L48" x 79.5"

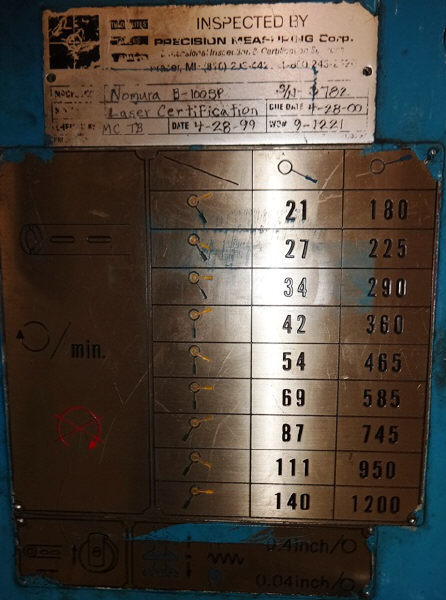

Spindle Speeds, Range21 to 1200 RPM
Feed Rate, Range.040 to 100 IPM
Power Rapid Traverse130 IPM
Spindle Motor Horsepower15 HP
Feed Motor Horsepower5 HP
Weight Approximately25000 LBS

PRICE:  F.O.B. OUR WAREHOUSE$22,500.00

F.O.B. OUR WAREHOUSE.............$22,500
Specific Location: #7-12A

Monthly Payments Starting At:....$450.68


Call Us at: 513-771-1952

Conditions of Sale
