| #VF-5/40 HAAS CNC VERTICAL MACHINING CENTER |

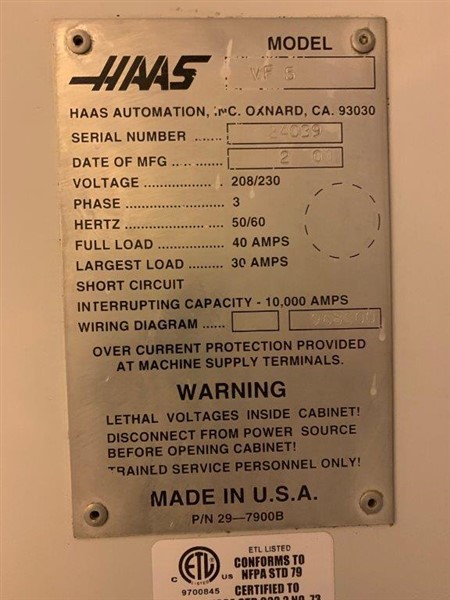

| New 2001, Serial No 24039, Model VF-5/40 |
| |
| TO VIEW VIDEO: |
| Click Here To Watch Video 1 |
| |
| EQUIPPED WITH: |

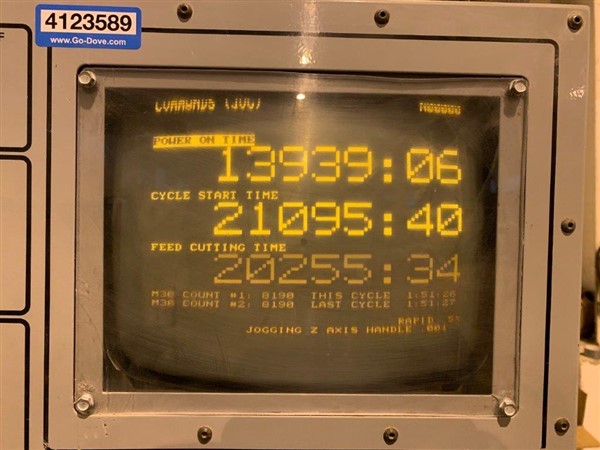

| Haas CNC Control |
| 20 HP Vector Drive - Automatic Lube System |
| 20-Position Umbrella Style Automatic Tool Changer |
| Rigid Tapping - Brushless Servos |
| Programmable Thru-Spindle Coolant System |
| |
| CATALOG SPECIFICATIONS: |
| Table Dimensions (Overall), W x L | 23" x 52" |
| Table Load Capacity | 4000 LBS |
| Table Longitudinal Travel (X-Axis) | 50" |
| Saddle Cross Travel (Y-Axis) | 26" |
| Quill Vertical Travel (Z-Axis) | 25" |
| Spindle Nose to Table, Maximum | 32" |
| Spindle Nose to Table, Minimum | 7" |
| Spindle Taper | #40 |
| Spindle Speeds, Range | 0 to 10000 RPM |
| Cutting Feedrate, Maximum | 500 IPM |
| Rapid Traverse Rates, X, Y, & Z-Axis' | 710 IPM |
| Tool Diameter, Maximum | 3.5" |
| Tool Weight, Maximum | 12 LBS |
| Spindle Motor, Horsepower Rating | 20 HP |
| Overall Dimensions, L x W | 11'5" x 9'6" |
| Overall Height | 9'10" |
| Weight, Approximately | 14600 LBS |
| |
| PRICE: F.O.B. OUR WAREHOUSE | $27,500.00 |
