10601 Glendale Rd.

Cincinnati , Ohio 45215
Proposal To:
Date:4/10/2021 7:31:13 PM
Reference:29326
Location:#11-7
Price:$39,500
Salesman:
Fax:
Call Us at: 513-771-1952

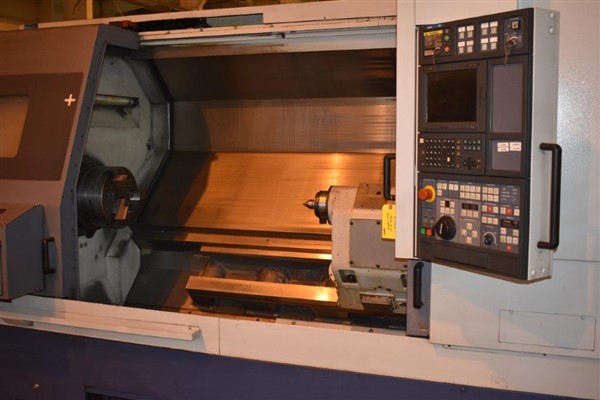

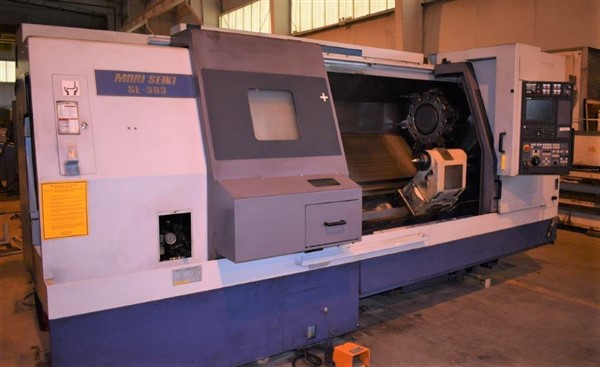

#SL303B/1500 MORI-SEIKI 2-AXIS CNC SLANT BED
  TURNING CENTER
Serial No 625, Model SL303B/1500

EQUIPPED WITH:
Mori-Seiki #MSG501 (Fanuc 18iT) CNC Control
12" SMW 3-Jaw Chuck w/Matsumoto Pneumatic Chucking
JIS A2-8 Spindle Nose - 12-Position Turret
Built-In Tailstock - Turbo Chip Conveyor
Coolant System - Dust Collector

CATALOG SPECIFICATIONS:
Hole Thru Spindle4.13"
Bar Work Capacity, Maximum3.5"
Swing Over Bed, Maximum28.15"
Swing Over Cross Slide19.69"
Center Distance64.45"
Turning Diameter, Maximum16.53"
Turning Length, Maximum61.42"
Cross Travel (X-Axis)9.84"
Longitudinal Travel (Z-Axis)64.96"
Spindle Speeds, Infinite Range25 to 2500 RPM
Feed Rate, Jog0 to 50 IPM
Rapid Traverse Rate, X-Axis590 IPM
Rapid Traverse Rate, Z-Axis787 IPM
Tailstock Travel55.12"
Tailstock Spindle Diameter5.11"
Tailstock Spindle Taper5 MT
Tailstock Spindle Travel5.91"
Spindle Motor Horsepower30 HP
Overall Dimensions, L x W183" x 83"
Overall Height85"
Weight Approximately20000 LBS

PRICE: F.O.B. OUR WAREHOUSE$39,500.00

F.O.B. OUR WAREHOUSE.............$39,500
Specific Location: #11-7

Monthly Payments Starting At:....$791.18


Call Us at: 513-771-1952

Conditions of Sale
